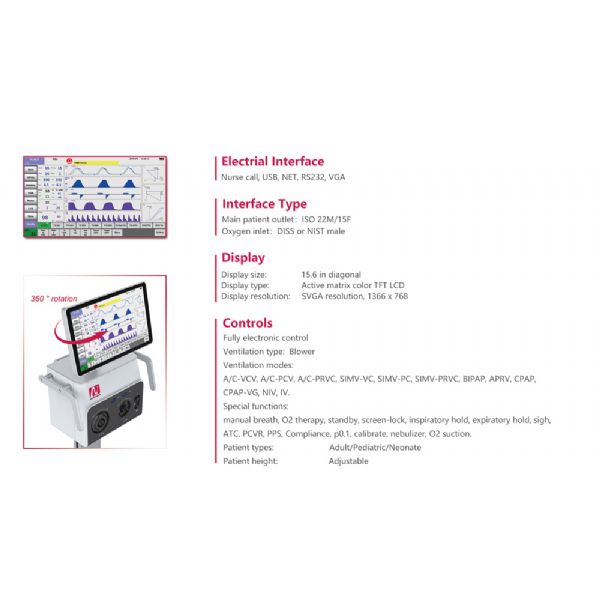

Electrial Interface

Nurse call, USB, NET, RS232, VGA

Interface Type

Main patient outlet:ISO 22M/15F

Oxygen inlet:DISS or NIST male

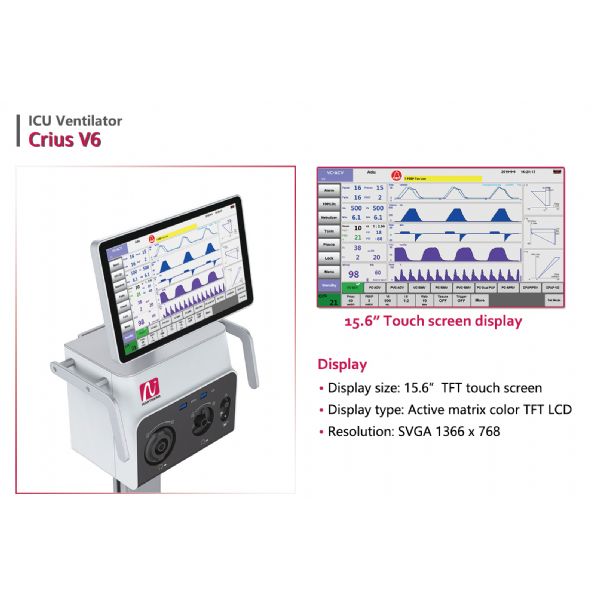

Display

Display size: 15.6 in diagonal

Display type: Active matrix color TFT LCD

Display resolution: SVGA resolution, 1366 x 768

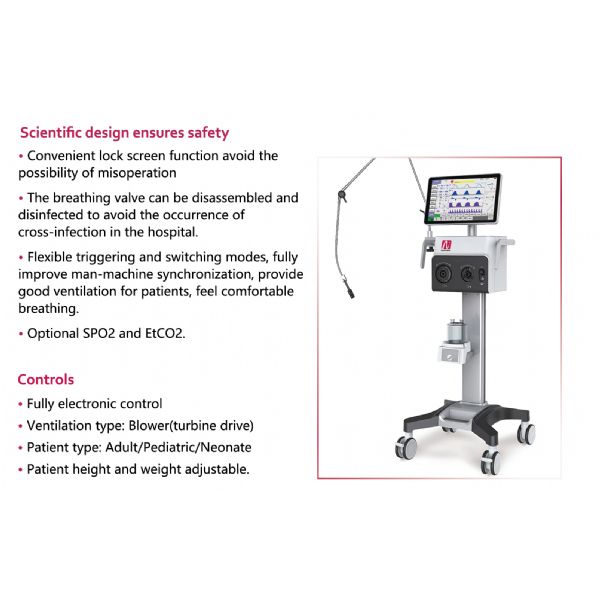

Controls

Fully electronic control

Ventilation type: Blower

Ventilation modes:

A/C-VCV, A/C-PCV, A/C-PRVC, SIMV-VC, SIMV-PC, SIMV-PRVC,

BIPAP, APRV, CPAP,CPAP-VG, NIV, IV.

Special functions:

manual breath, O2 therapy, standby, screen-lock, inspiratory hold,

expiratory hold, sigh,

ATC, PCVR, PPS, Compliance, p0.1, calibrate, nebulizer, O2 suction.

Patient types: Adult/Pediatric/Neonate

Patient height: Adjustable

Electrical and gas supplies

Input voltage:

100 to 240V ~ ±10 %, 50 / 60 Hz AC or 24 VDC±10 %

Power consumption: 50 W typical

Protection class: Class I

Backup battery:

2 batteries(5200mAh each)/ hot swappable

Oxygen supply:

280 to 600 kPa (41 to 87 psi), 120 L / min

Low pressure:

oxygen ≤15 L / min, max. 600 hPa for low pressure

Alarms

Operator-adjustable: Low/high minute volume, low/high pressure,

low/high tidal volume, low/high rate, apnea time, low/high oxygen

Optional: low/high CO2, low/high SPO2

Special alarms: Oxygen concentration, disconnection, loss of PEEP,

exhalation obstruction, flow sensor, power supply batteries, gas supply

Loudness Adjustable: 1 to 9

Event log: Storage and display of up to 1000 events with date and

 time stamp

Physical dimensions

Weight: < 45.3 kg

Dimensions(WxHxD): Approx. 600x402x415mm
