Lead

Standard 12 leads

Input Circuit

Built-in defibrillator protection

Acquisition Mode

Simultaneous12 leads acquisition

Measurement Range

±5mVpp

Time Constant

≥3.2s

Frequency Response

0.05Hz~150Hz (-3dB)

Sensitivity

2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV

Input Impedance

≥50MΩ

Input Circuit Current

＜0.05µA

Noise Level

＜15µVp-p

Anti Baseline Drift

Automatic

Patient Current Leakage

＜10µA(220V-240V)

Filter

EMG Filter：25 Hz/ 30 Hz/ 40Hz

Low Pass Filter：75 Hz/ 100 Hz/ 150Hz

DFT Filter：0.05 Hz/ 0.15 Hz/ 0.25 Hz/ 0.32 Hz/ 0.5 Hz/ 0.67Hz/ ADS

AC Filter : 50 Hz / 60Hz

CMRR

98dB

Recording Mode

Automatic: 12CH×1, 6CH×2, 6CH×2+1R, 3CH×4, 3CH×4+1R ,3CH×4+3R
Manual: 12CH, 6CH, 3CH, 2CH, 1CH
Rhythm: Any lead selectable

Recording System

Thermal matrix printing

Recording Paper

Roll: 216mm×30m, 210mm×30m
Z-fold: 210mm×295mm×200 sheets

Paper Speed

5 mm/s, 6.25 mm/s, 10 mm/s, 25 mm/s, 50 mm/s

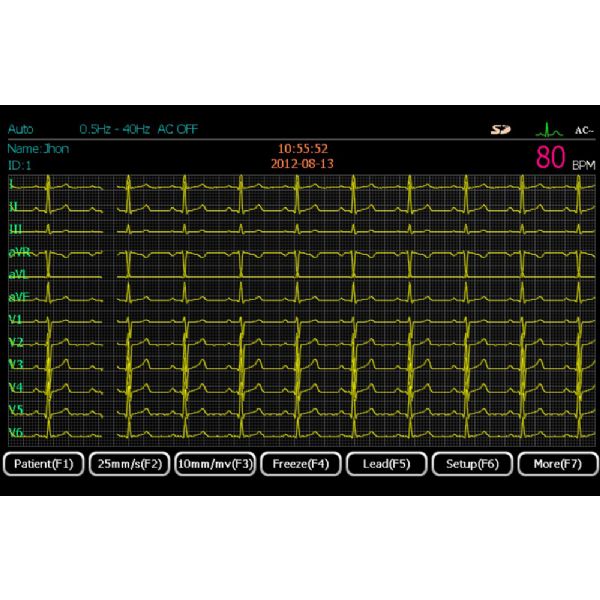

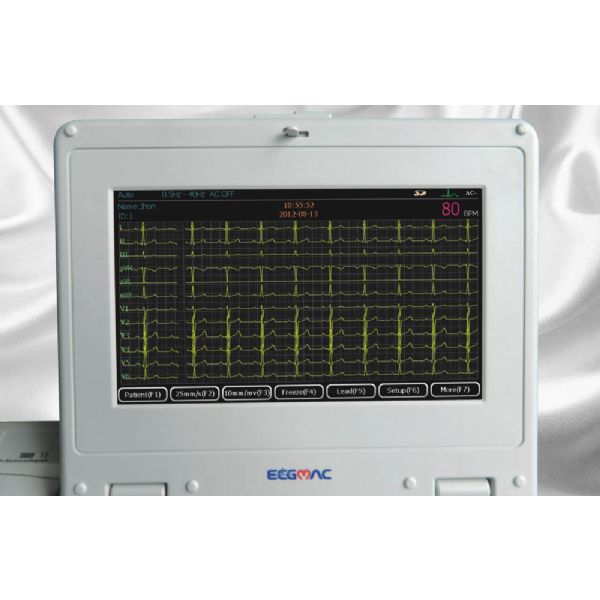

Display

800×480 pixel TFT LCD

Interface

Network interface, USB Master/Slave, SD card

Safety Standard

IEC I/CF

Sample Rate

Normal: 1000sps/channel
Pacemaker: 10,000sps/channel

Pacemaker Detection

≥± 2 mV  ≥± 0.1 ms

Dimension

435mm×335mm×98mm

Weight

4Kg（include battery）

Power Supply

AC: 100~240V, 50/60Hz, 70VA~100VA
DC: 14.8V/4400mAh, built-in lithium battery
